Bit Bucket Pipelines - Part 2: Deploying ASP.NET Core to an Azure Web App

Series

Intro

In Part 1 of this series we walked through the basics of Bit Bucket Pipelines and how to build and test a .NET Core app.

In Part 2 of this series we will walk through how to publish the .NET Core application and deploy it to a Web App in Azure.

Packaging

When we finished Part 1, we ended up with a simple ASP.NET Core Razor website. We will continue on from that and use the same code to publish to an Azure Web App. The first step is to package our web app so that we can publish it.

branches:
  master:
    - step:
        name: 'Package'
        caches:
          - dotnetcore
        script:
          # NOTE: zip isn't installed in the image, so we must manually add it
          - apt-get update
          - apt-get install zip -y
          # Build all
          - dotnet build
          # publish & zip
          - dotnet publish ./web/web.csproj -c Release -o ./publish
          - cd ./publish
          - zip -r web.zip .
        artifacts:
          - 'publish/web/web.zip'

The above YAML produces our packaged web app as a zip file. The best practice is to deploy from master, so our Package step only runs when the master branch is changed. Let's go over the rest of our config and before we come back to the apt-get commands. First we build the entire solution, and by doing so we will be doing a restore of all required nuget packages. We then use the standard dotnet publish command to publish to a local directory. As we will be using zip deploy, we need to zip up the contents of our publish directory.

Now unfortunately the .NET Core image we are using to build does not include any zip utilities. Remember, our pipeline is running on a Linux docker image. This allows us to run any Linux CLI command during the build. With this in mind we can run an apt-get update and apt-get install zip -y. This will install zip into our image. The alternative would be build our own docker image based off .NET Core SDK 3.1 and add the zip library directly into the image. However, this would mean having to maintain that docker image and considering these commands only take a few seconds to run, it's a trade-off I'm happy to make. 😀

Once we've zipped up the published contents we then tell pipelines about our artifacts. This is important as only artifacts can be references in the deployment step.

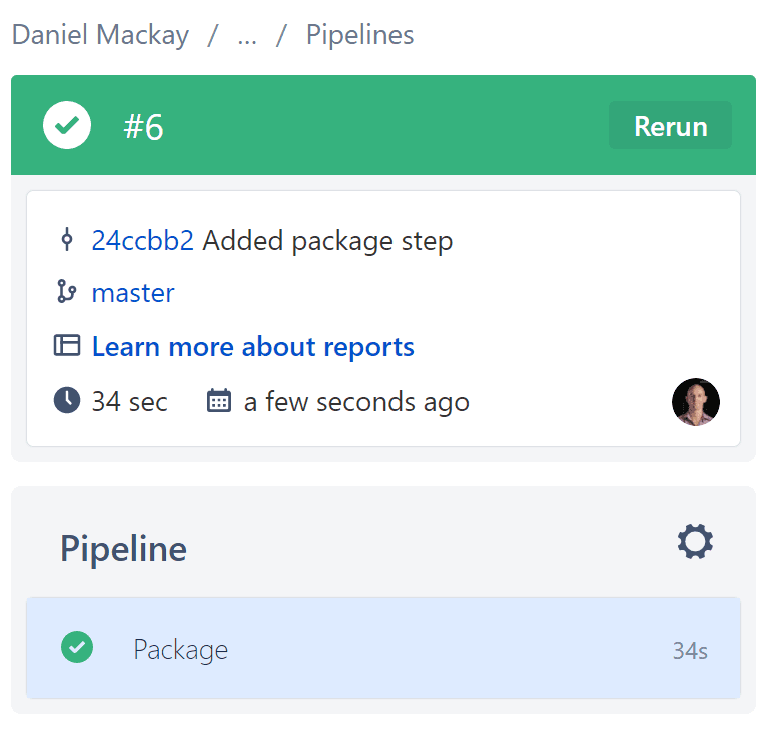

After pushing these changes to bit bucket we can see our package step successfully run:

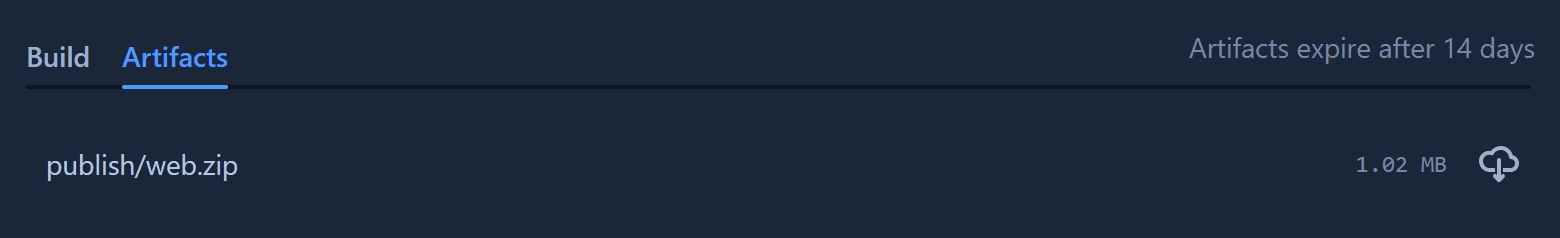

And we can see our artifacts produced, which we are able to download to inspect the correctness of the contents.

Deployment

For the deployment step there are a couple things we first need to setup

Azure Web App
Service Principle

Azure Web App

For brevity, I'll assume you already know how to create a web app within Azure.

Service Principle

The slightly tricky part is creating the service principle. The best way to do this is use the Azure CLI. You can install this almost anywhere, or alternatively use the Azure Cloud Shell. My preference is to install it on windows, then run in Powershell.

Once the Azure CLI has been installed you can login to azure via the following command which will take you through a login process in the browser. You need to ensure you login with the same account that has access to your Azure resources:

az login

This will show you a list of the subscriptions you have access to. Scan the list to find the one you want to deploy into and select it by using the following

az account set --subscription [name or ID]

You can confirm you're in the right subscription by running:

az account show

Now to create the service principle you'll need to run:

az ad sp create-for-rbac --name [ServicePrincipalName]

Once that is created you'll see the following:

{
  "appId": "[Removed]",
  "displayName": "aspnet-core-pipelines",
  "name": "http://aspnet-core-pipelines",
  "password": "[Removed]",
  "tenant": "[Removed]"
}

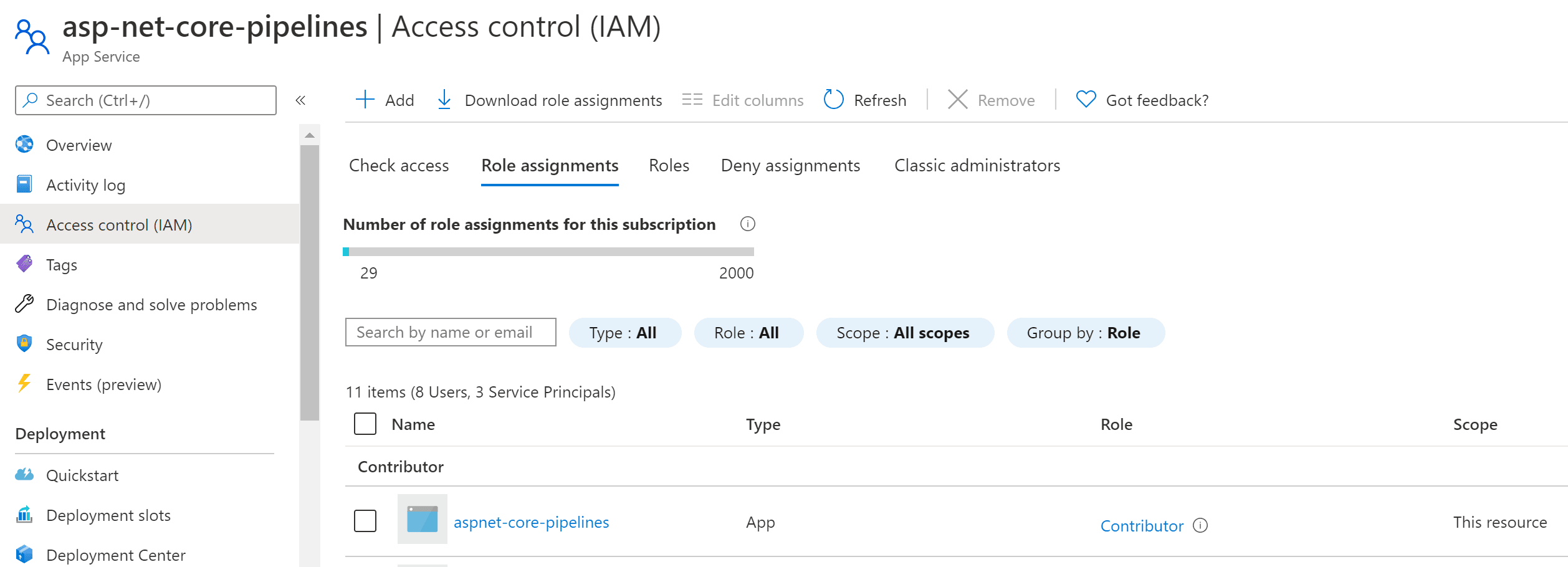

You'll then need to give your newly created service principle access to your web app. The easiest way to do this is to navigate to the web app or the resource group that contains it and add the service principle as a contributor. You can check this has been done successfully by navigating to the Role Assignments tab:

Pipelines Configuration

After we've got our service principle setup, we can now configure the deployment pipeline. To add a deployment step we need to add the following to our pipeline:

- step:
    name: Deploy to test
    deployment: test
    # trigger: manual  # Uncomment to make this a manual deployment.
    script:
      - echo "Deploying to test environment"

This will add a deployment to our 'test' environment. To deploy to our web app we need to add the following into the script section:

- step:
    name: Deploy to test
    deployment: test
    trigger: manual
    script:
      - pipe: microsoft/azure-web-apps-deploy:1.0.3
        variables:
          AZURE_APP_ID: $AZURE_APP_ID
          AZURE_PASSWORD: $AZURE_PASSWORD
          AZURE_TENANT_ID: $AZURE_TENANT_ID
          AZURE_RESOURCE_GROUP: 'dan-dev-rg'
          AZURE_APP_NAME: 'asp-net-core-pipelines'
          ZIP_FILE: 'publish/web.zip'
          # SLOT: '<string>' # Optional.
          # DEBUG: '<boolean>' # Optional.

This is a manual deployment step, meaning we must trigger this ourselves from within bit bucket. If you want this to be automated simply remove the trigger. To do the deployment we are relying on a pipe. Pipes are existing functionality that we can leverage in our pipeline. In our case we are using the azure-web-apps-deploy:1.0.3 pipe when has been provided by Microsoft.

We need to configure all the required variables. In particular we are referencing three repository variables:

$AZURE_APP_ID
$AZURE_PASSWORD
$AZURE_TENANT_ID

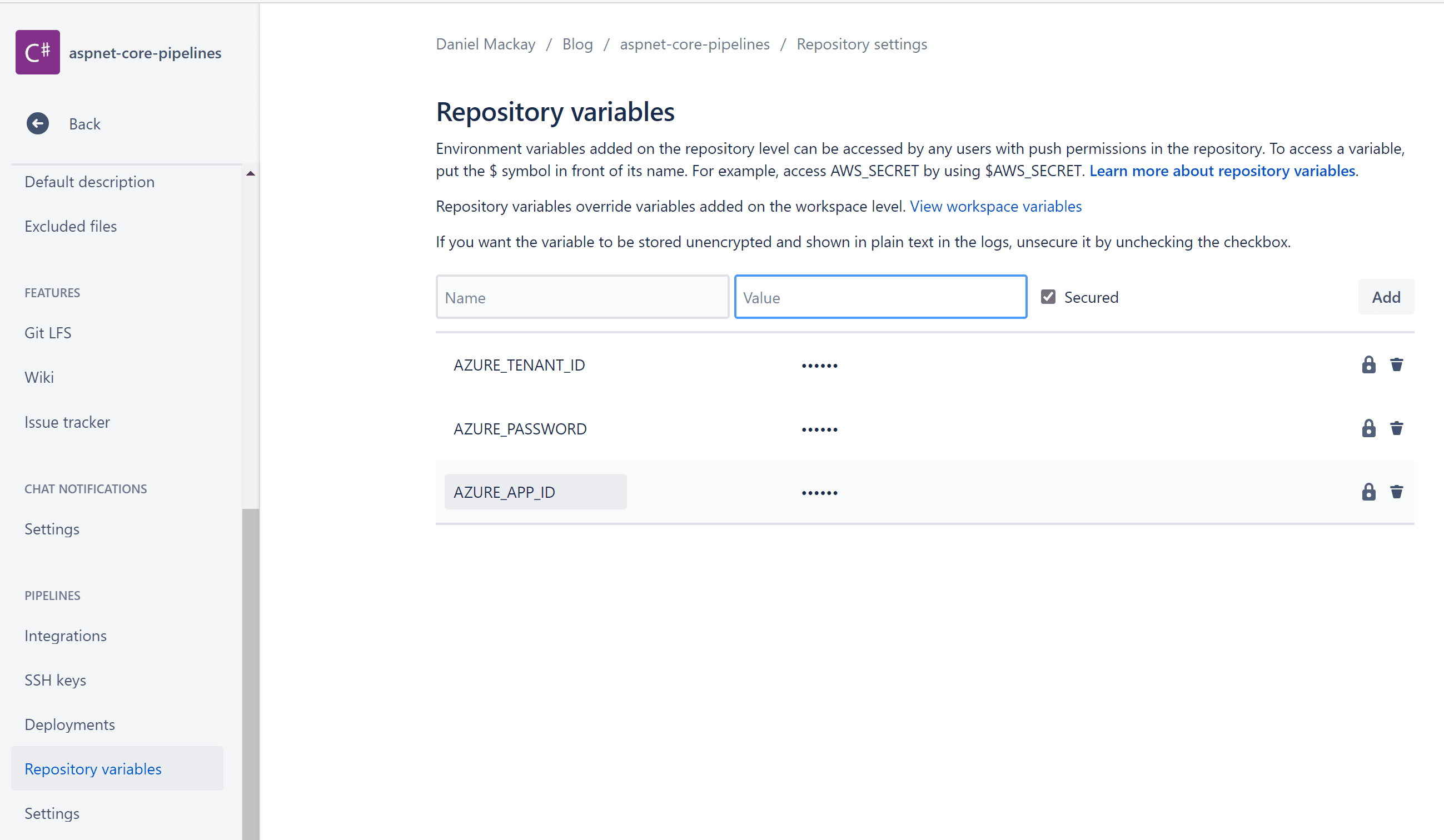

This is all secure information and as such we don't want to store this in our pipelines.yml which is committed to source control. These instead can be set as environment variables:

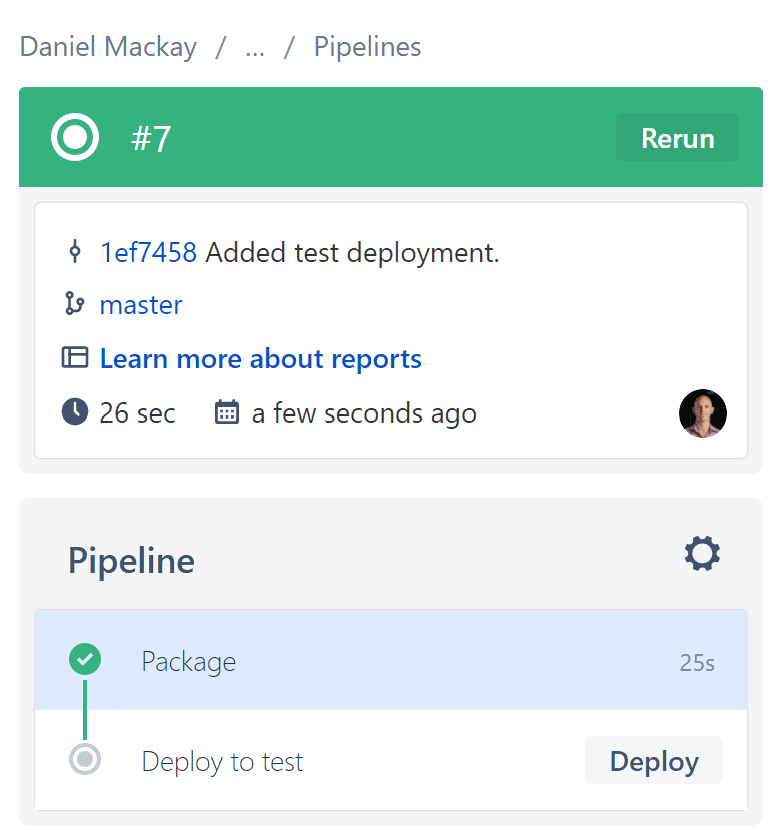

This values for these variables comes from the response to our az ad sp create-for-rbac command. If we push these pipeline changes we will now see our deployment step in the pipeline:

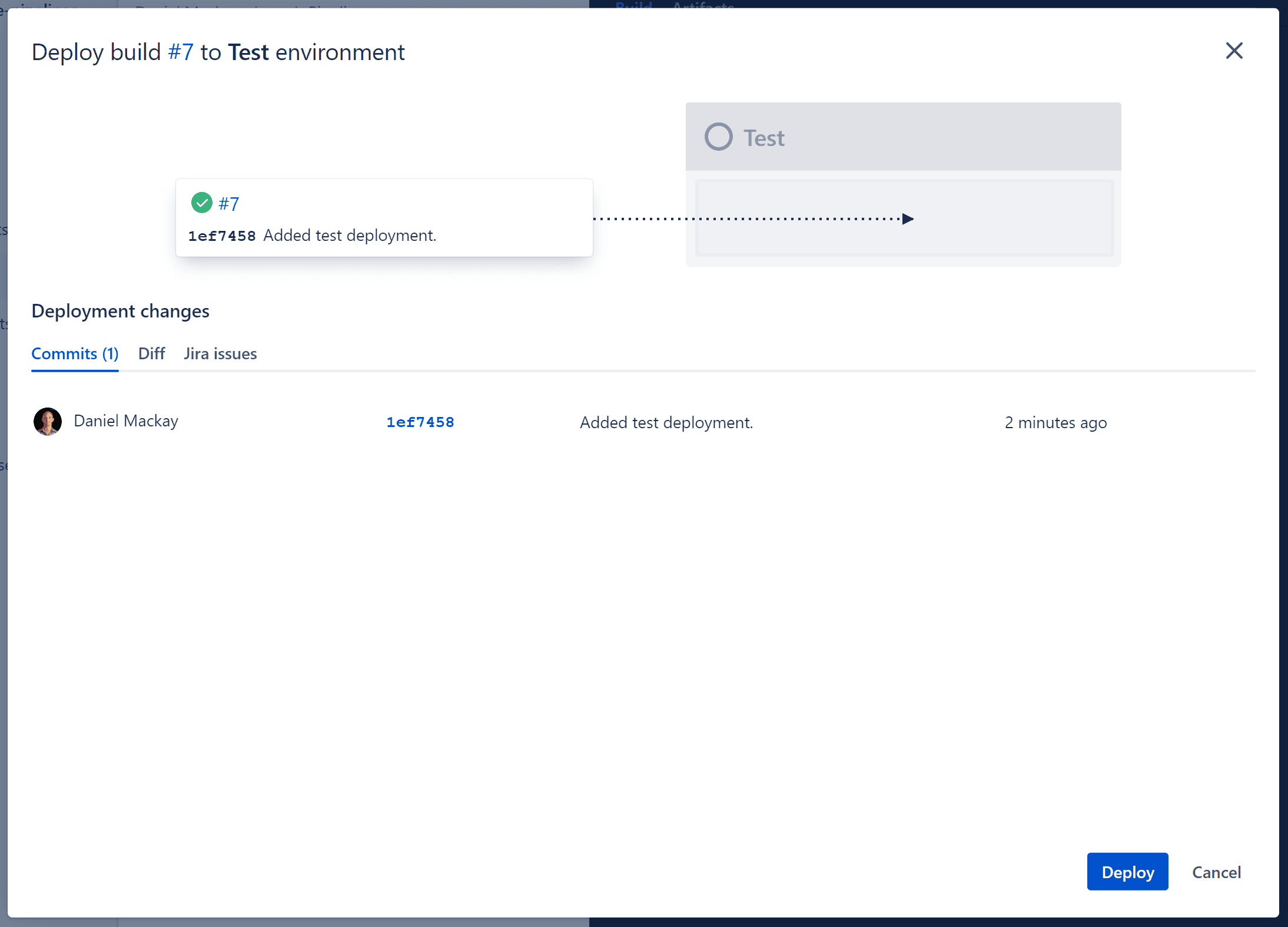

Clicking the Deploy button will take us to a dialog:

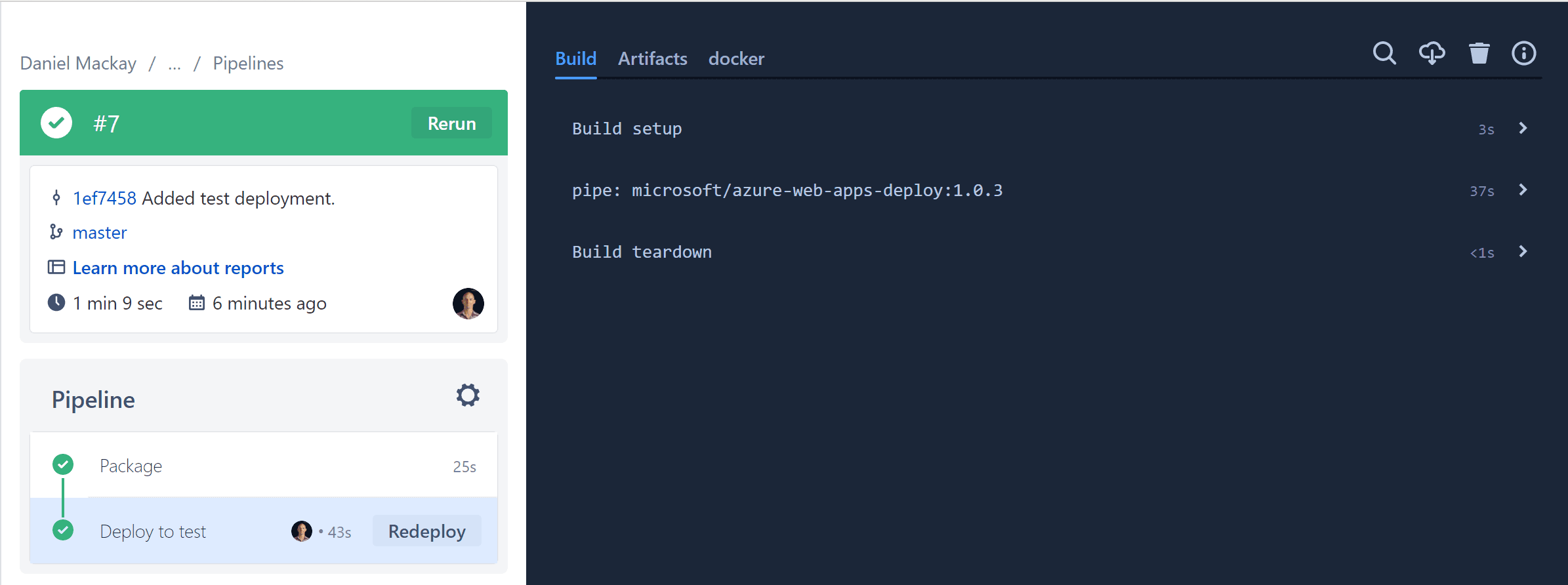

If this was a commercial project and we were using Jira, we would also see the Jira tickets shown above. Now, if all has gone well we will see a successful deployment step in BitBucket:

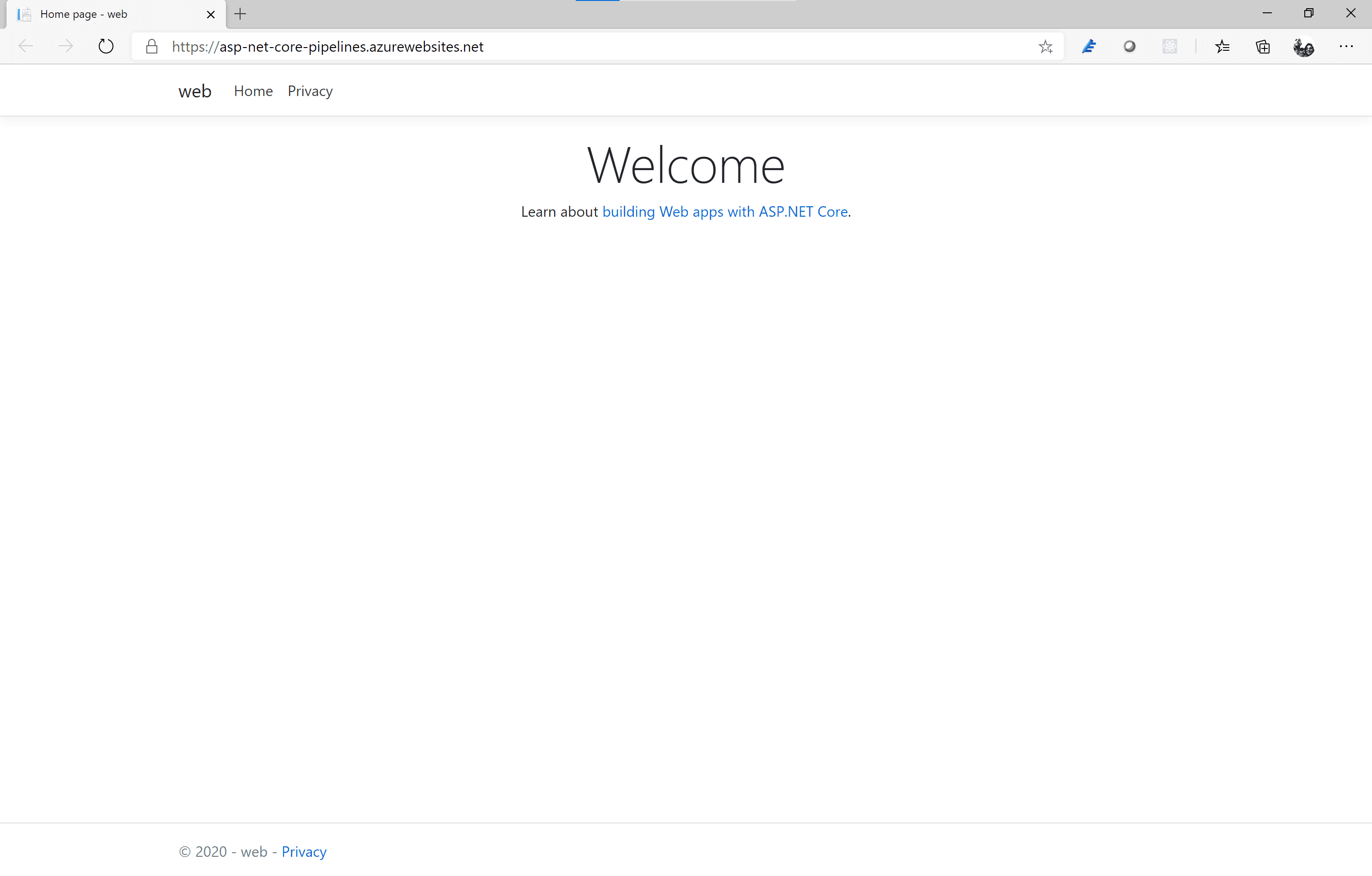

And our website is now live!

And we're done...

Additional Pipes

We've now seen how the microsoft/azure-web-apps-deploy pipe can be used to deploy to web apps.

There are several other pre-built pipes to deploy to other common Azure services and all work in similar ways:

You can search for more pipes in the pipelines validator

Summary

In this post we've seen how to package up an ASP.NET Core Web App via pipelines, and output that package as an artifact. We then saw how to set up a service principle, and leverage them for secure deployments. And lastly, we saw how to configure the web app pipe, to push our package to Azure.

There was a few steps involved, but our end result is a reliable secure pipeline that publishes a package to our Azure environment. Achieving all this without having to manage an on-premise build server, is a big win in my books! 😎

In Part 3, I'll cover how to use Bit Bucket Pipelines to deploy a React app to Azure Blob Storage.
